SR C2
The Sampo Rosenlew C2 is specially designed for experimental fields and seed breeding.
Watch video

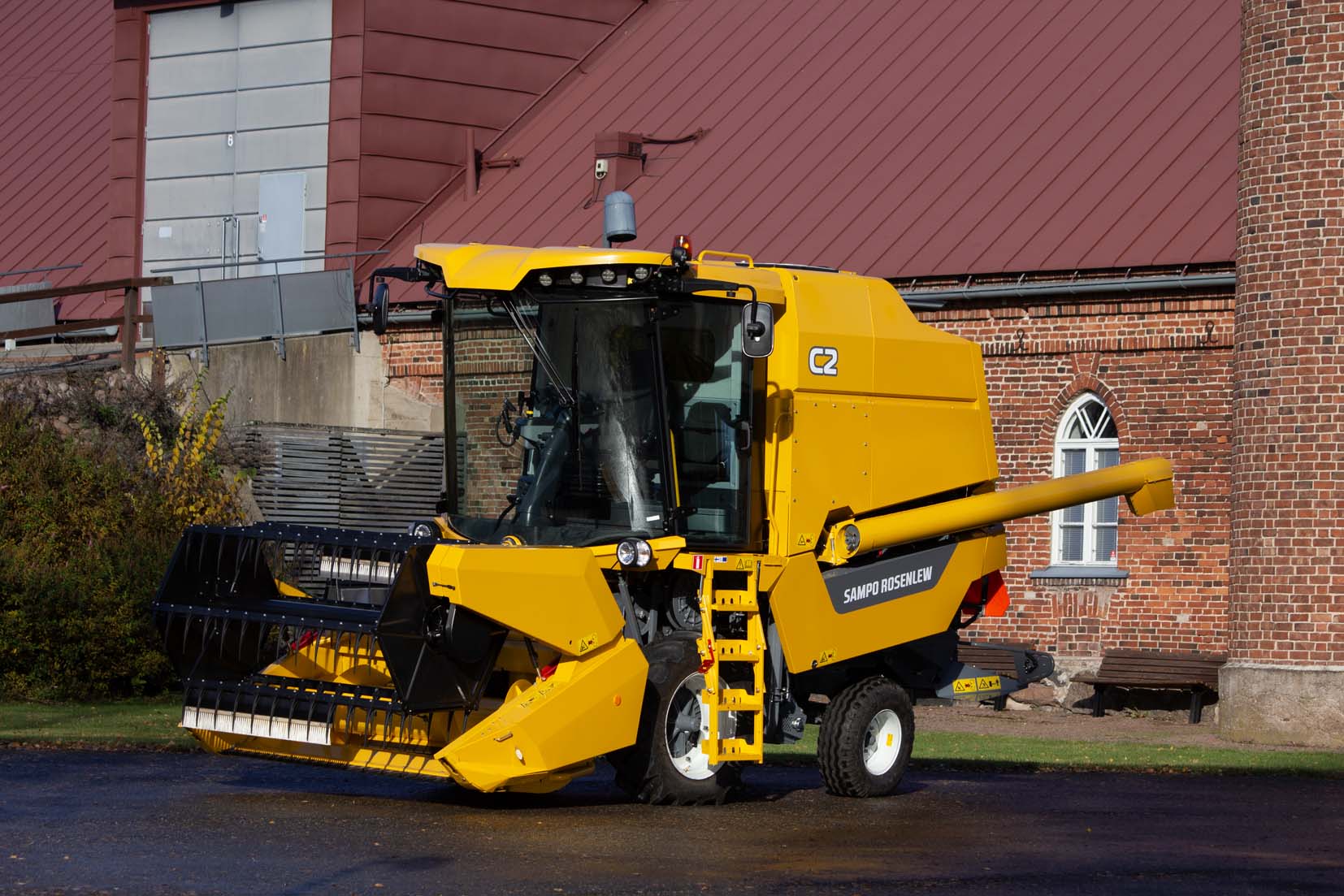

The SAMPO ROSENLEW C2 is specially designed for experimental fields and seed breeding. The modern appear and ergonomic cab has been perfected by the company’s engineers. The single most important factor in plot harvesting is to ensure that all the grains come from the intended plot. To guarantee this, the SR C2 has an extremely effective and reliable self-cleaning system.
Cutting header
1,5m, 2,0m, 2,3m
Grain tank
1875 l
Engine
130 hp YANMAR engine
Air conditioning
Yes
Threshing cylinder
7-rasp bar HD sealed
Straw walkers
3 pcs
Straw chopper
available
Front tires
12.4R24
Rear tires
11.5-15
Cab
AVARA -spacious wide and ergonomic

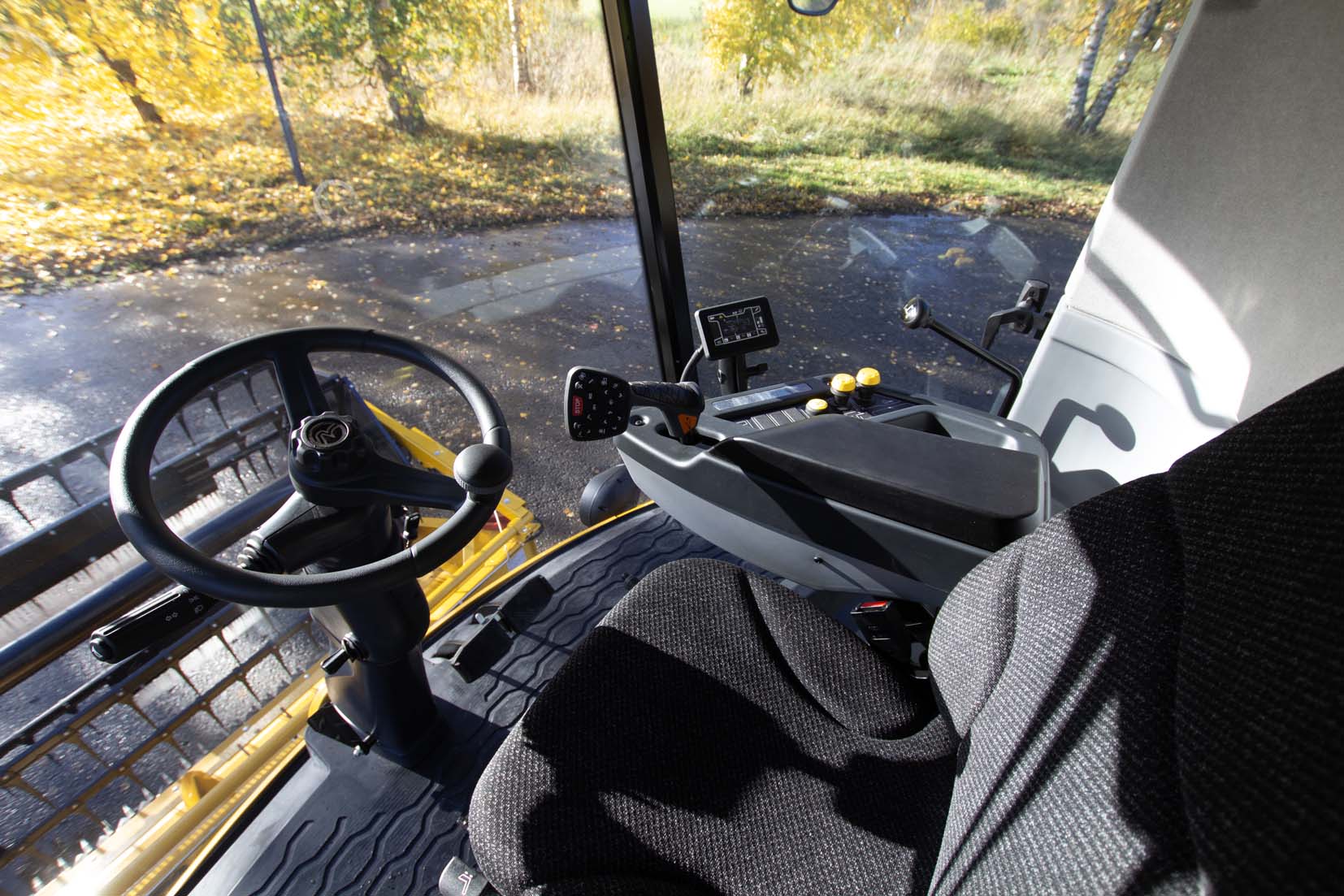

The driver’s clear visibility of the cutting table has been one of the things that were taken into consideration when designing the new cab. The control console integrated in the seat acts as the nerve centre of the AVARA cab. From the COMVISION LITE, touchscreen, you monitor and adjust harvesting adjustments, like different rpm’s.
Cutting header
Special designed header

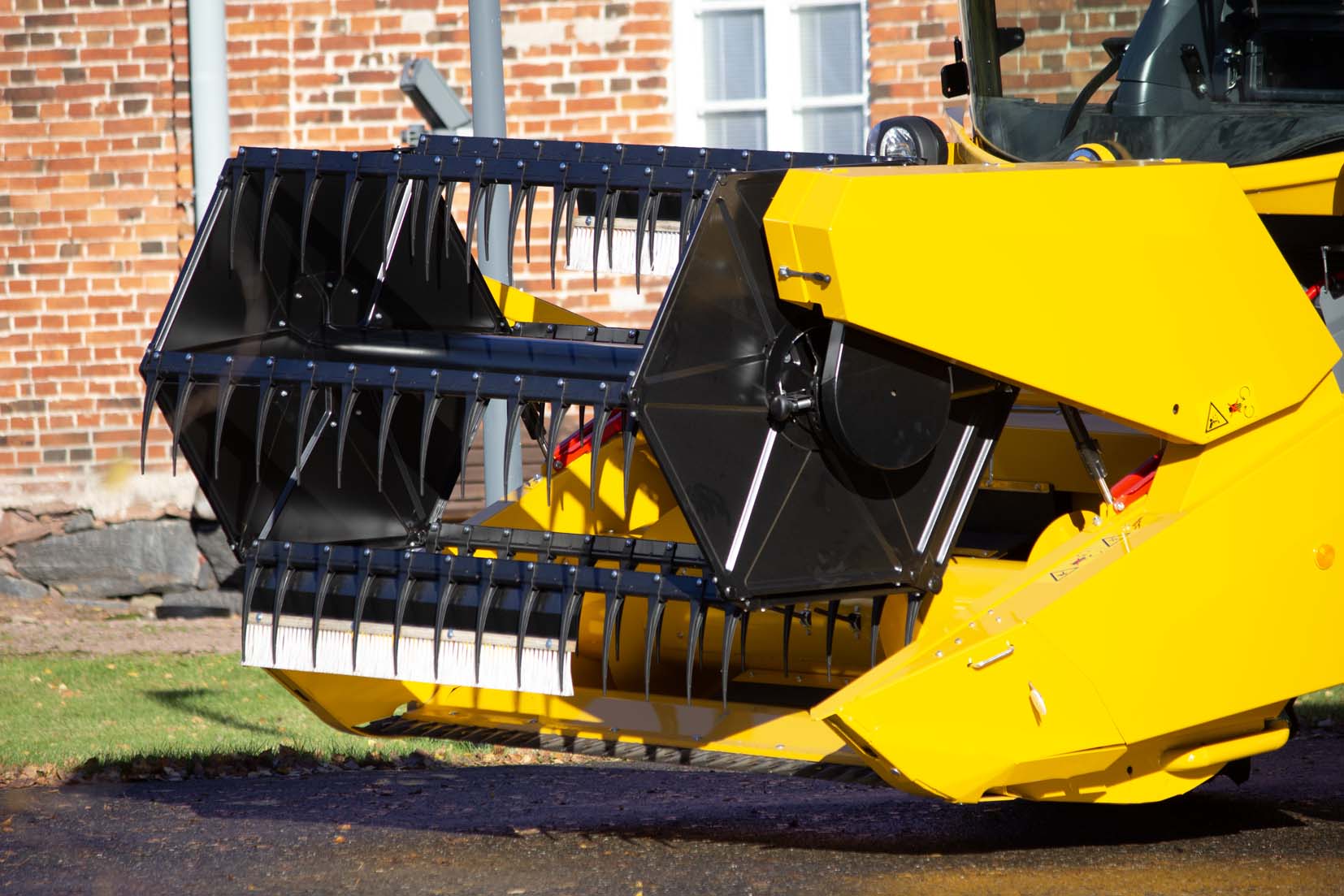

The header cuts cleanly and evenly. The electrical and hydraulic adjustments conveniently operated from the cab make threshing versatile and accurate. . An electrical reverser for the header can be used in case of some unwanted particle tries to enter. Header sizes are available, 1,5 m, 2,0 m or 2,3 m The header is equipped with a continuous airflow blower to ensure clean and uniform crop samples. The crop is evenly fed by the feeder elevator into the threshing drum. Two feeder chains support and stabilize the slats. The feeder elevator is thoroughly cleaned after every plot by the CHAC System. The blower is the core of the airflow cleaning system. The airflow is produced by a belt driven blower and positioned precisely at the cleaning points by means of a distribution system.
Threshing mechanism
Threshing system designed for plot harvesting
The Heavy-Duty closed threshing drum and large wrapping angle has been proven it’s value in more than 4000 plot combines. The electrically adjustable threshing drum speed is designed to outperform itself even in the hardest threshing conditions. This cylinder manage in the thoughts crops and conditions. The concave clearance can be adjusted with an electrical motor also. The cylinder speed and concave clearance, you adjust from the COMVISION LITE touch screen in the cab. The special made good grain elevator has a sealed construction throughout the whole elevator area. This prevents grain overflow and ensures clean, uniform samples. The elevator chain has round plastic, paddles which fits perfectly to the “pipeline”. An airstream helps the material flow also, to keep clean in the most difficult conditions also.
Sieve and straw walker areas
Double sieve system available
The C2 is equipped with three straw walkers and a single sieve system. The walker area is easy to access from a hatch from the rear. For additional efficiency an optional double sieve system can be fitted on the combine. With the added sieve area, you can choose between 5 different sieves, 5,8,10,12 or 16 mm. The upper sieve is adjustable. This system includes also an efficient return system. The returns are blown back to the grain pan area.
Grain tank and grain chopper
BIg sizes tank as standard

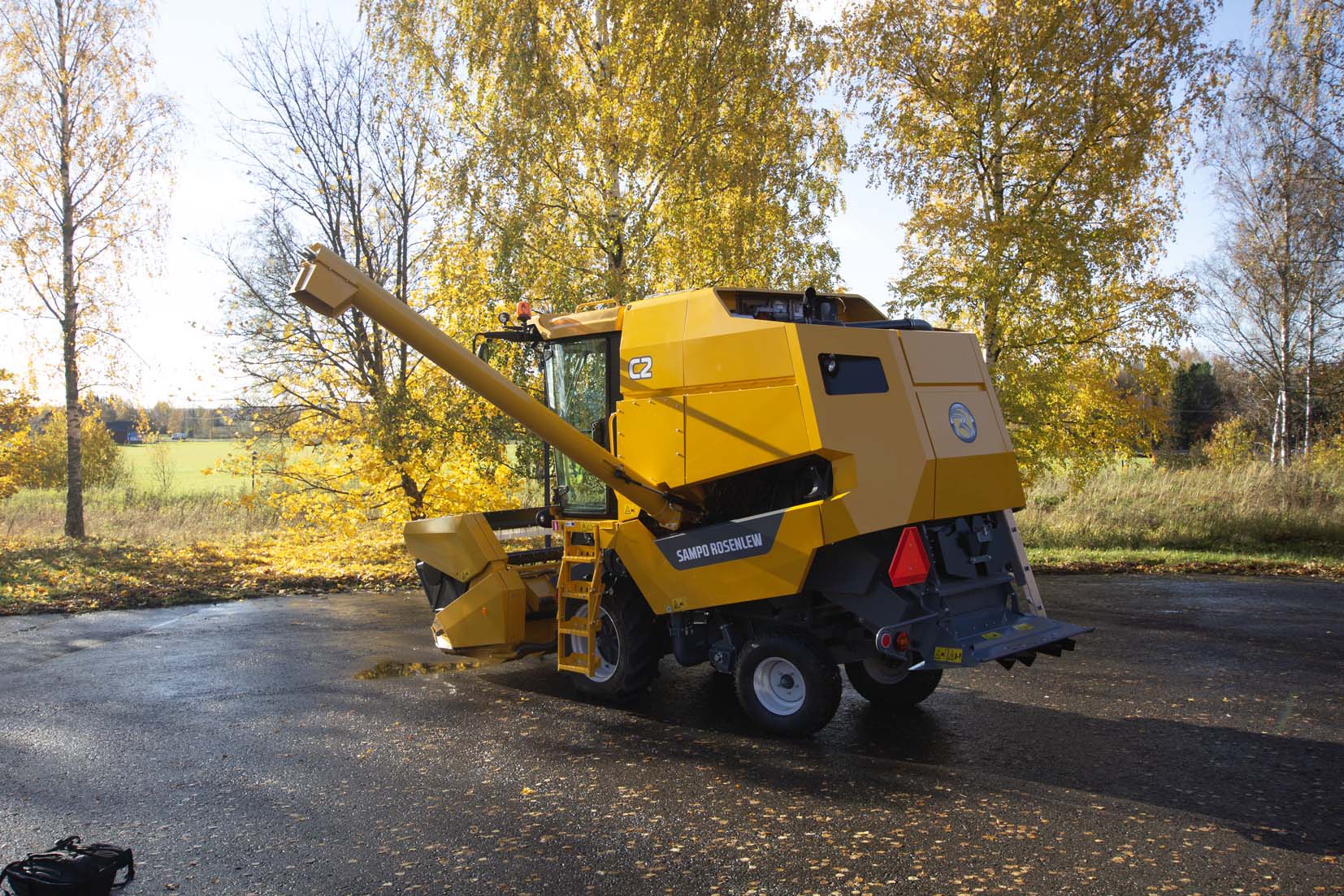

The C2 has a big grain tank with a volume of 1875 liters. The special good grain elevator drops the material in the middle of the tank and distributes it evenly. From the cab you have a big window to the tank and a plex glass grain tank lid brings day-light to it. The unloading pipe is operated from the cab’s joystick, pushing it up or down and starting the unloading. The unloading height is 3,18 m. The big diameter auger has high speed of the unloading.
Engine and transmission
More power with new engine

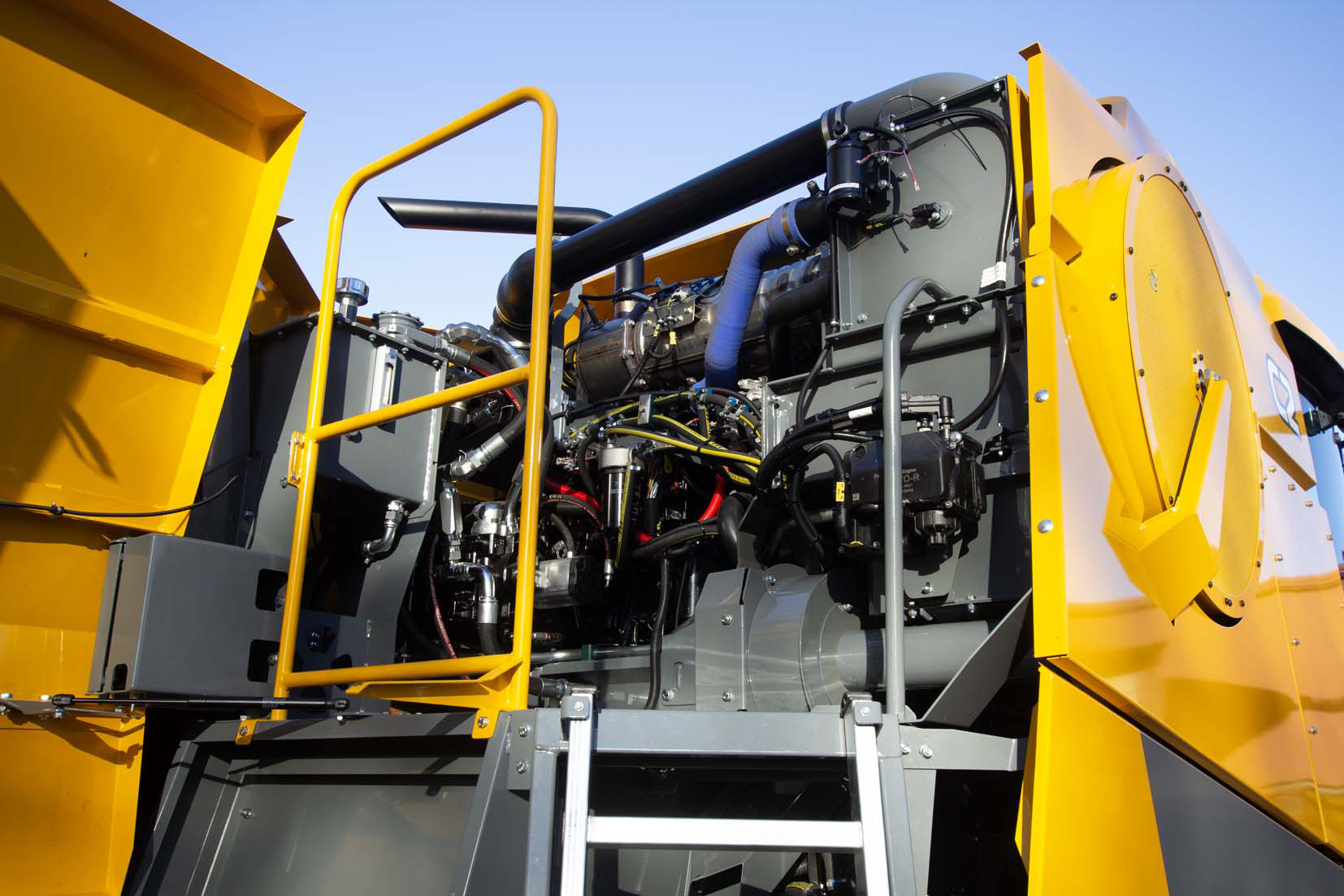

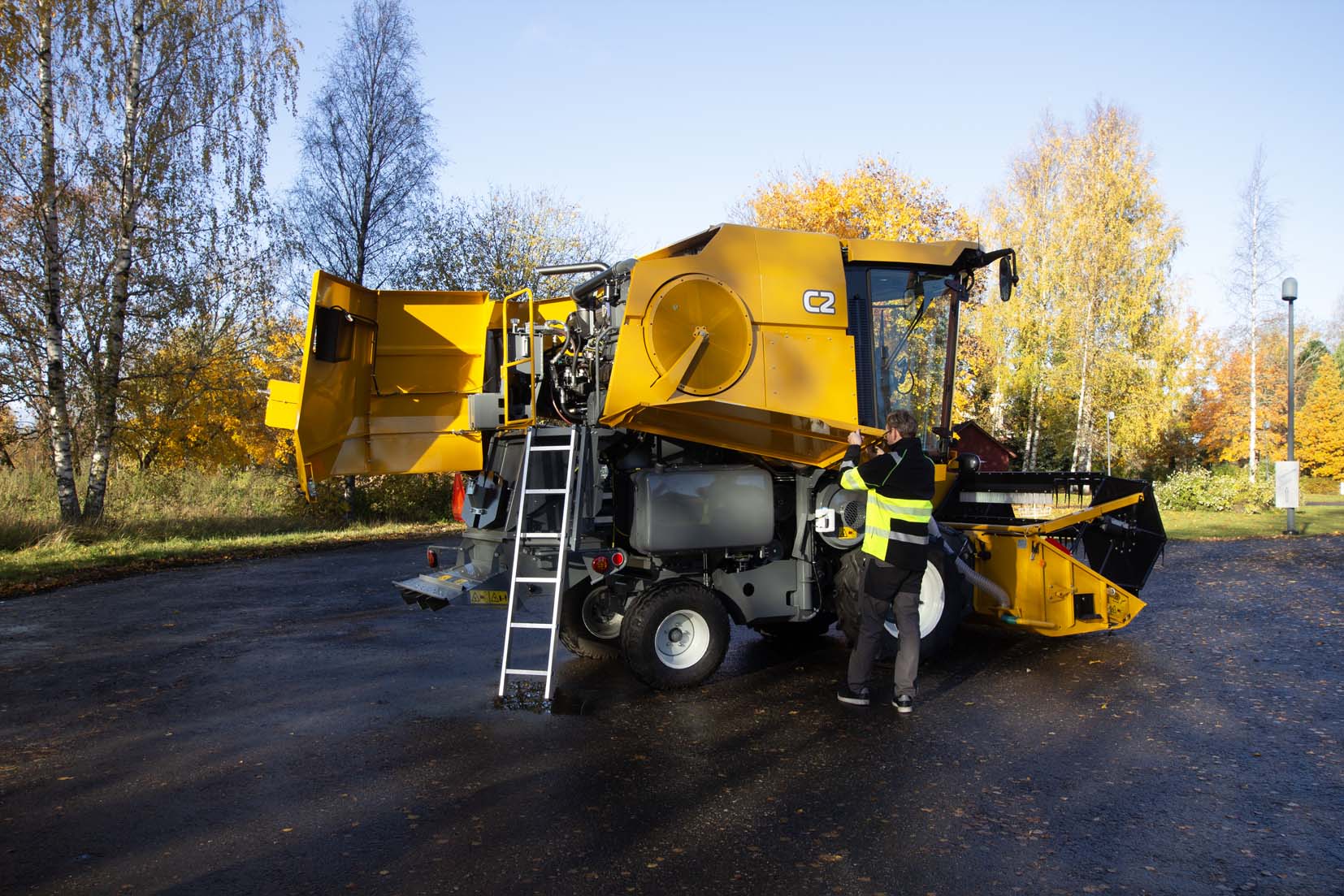

The strong 130 hp YANMAR 4-cylinder engine puts the SAMPO ROSENLEW plot combine to the next level. The engines emission level is TIER5 and has also EPA approval. Cooling screen of the engine has big rotary net which ensures that big dust particles won’t get stuck on the net. The net has even a vacuum cleaner type of nozzle which sucks the particles away. The transmission hydraulics has been upgraded and has a big hydraulic drive pump. A big service door at the rear of the combine gives good access to the engine area. Fuel tank is 200 liters and the DEF tank is also easy to access. The engine can be equipped with an air compressor and air tank. As before the combine can be equipped with 4 WD on the rear axle. .
Accessories
Many features available
SR C2 can be equipped with maize equipment from the factory. Maize headers are available from different manufacturers. Also rape extension for the cereal header are available. On the C2 can be fitted weighing systems also.
